AC Technology M14150B 15HP 400 480V 3 Phase VFD Drive 33245

  For sale is a AC Technology M14150B 15HP 400/480V 3-Phase VFD Drive.
 Item: AC motor variable frequency drive (VFD) by AC Technology Corp,
model M14150B. Nameplate: 15 HP / 11 kW, Enclosure Type 1.

Input: 400/480 VAC, 50?60 Hz, 3-phase, 27.2/23.8 A.
Output: 0?400/460 VAC, 0?120 Hz, 3-phase, 24/21 A.

Features visible: keypad with LCD and START/STOP, FWD/REV,

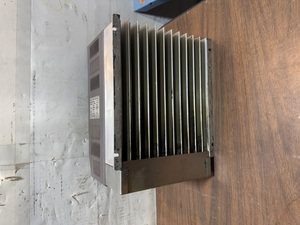

PROG/AUTO/MAN buttons; screw terminal blocks; large finned heatsink
with two cooling fans; mounting base/plate.

Condition: used with scuffs, scratches, dust, and oxidation on the
heatsink/fan frames. Cut pigtail wires from previous installation. Open

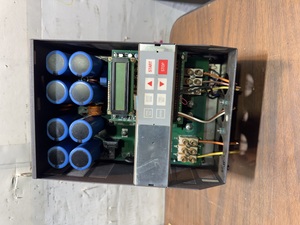

top shows internal capacitors and board as pictured. Assumption: may be
missing a top cover.

Included: the drive only as shown, no manuals, cables, or additional
accessories.

Typical use: speed/control of 3?phase motors on pumps, fans, conveyors,
and machinery. Assumption: not tested; operating condition unknown.
(Click on the thumbnail images to enlarge)
