Monarch 16CY Lathe Cast Iron Feed Gear Guard Cover Panel w Bolts 32705

Up

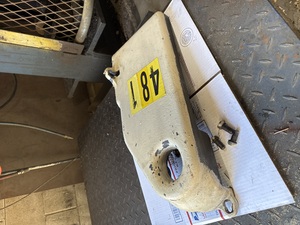

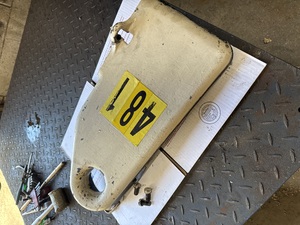

  For sale is a Monarch 16CY Lathe Cast Iron Guard/Cover Panel w/ Bolts.
 Heavy cast iron machine guard/cover panel. Appears to be an original
cover from an industrial lathe.

Assumption: removed from a Monarch Machine Tool Co. 16" CY engine lathe

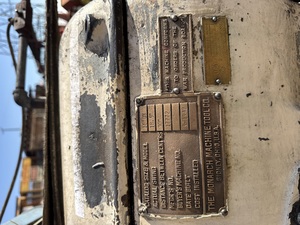

(nameplate shown in photos: actual swing 18.5", 30" between centers,
built 9-1942, Mfr No. 17772). Please verify fitment to your machine.

Features:
- Cast iron construction

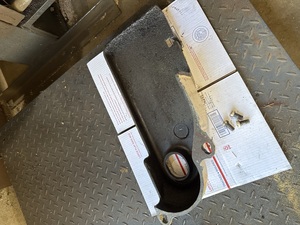

- Large circular opening at one end
- Several mounting ears/holes
- Cream/gray paint

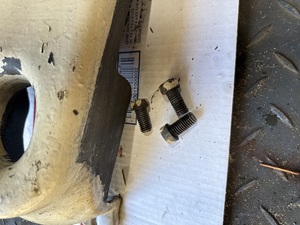

- Includes three short hex bolts shown

Condition:
- Used, with heavy cosmetic wear from shop use
- Scratches, scuffs, paint loss, grime
- One mounting ear shows damage/chipping; edges show nicks
- No obvious cracks seen besides the chipped areas, but part is
untested

Included:
- Cover panel
- 3 mounting bolts (as pictured)

Good for replacing a missing/damaged guard on a similar machine,
restoration projects, or fabrication reference. Review photos for
measurements and condition. Sold as-is.

CATALOG SIZE & MODEL              16" CY
ACTUAL SWING                           18.5"
DISTANCE BETWEEN CENTERS      30"
MFR'G NO.                             17772
BUYER'S MACHINE NO.            17772
DATE BUILT                             9 - 1942
COST INSTALLED

THE MONARCH MACHINE TOOL CO.
SIDNEY, OHIO, U.S.A.

THIS MACHINE CONFORMS TO ORDERS OF THE WAR PRODUCTION BOARD

SERIAL NO.                               17772
ULRICH MANUFACTURING CO.
ROANOKE, ILLINOIS, U.S.A.
