MG Industries System 80 Machine Control Console CMC MNBE 11317 4 33061

  For sale is a MG Industries System 80 Machine Control Console CMC MNBE-11317-4.
 Industrial machine control console for cutting/tracer systems. Front
panel marked MG Industries System 80.

  comes from a working machine.

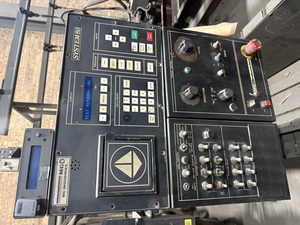

Features: display and numeric keypad, Program/Mode keys (Run, Teach,
Load, Store, Jog, Cycle Start/Stop), tracer control (Direction, Speed,
Drive), extensive gas control and station select switches, emergency
stop.

Rear labels/connectors: Drive Interface, Serial I/O, X & Y Encoder
Inputs, Oxygen/Plasma interfaces, External Servo, Auxiliary Line Power
Output. Power input listed 115/230 VAC, 50/60 Hz, 4A max. Back label:
Cleveland Motion Controls Type MNBE-11317-4, S/N 16903-01-01.

Condition: used, notable cosmetic wear and residue around knobs; labels
show wear. Display is lit in photo (?TEST MEMORY - 26?). Overall
functionality beyond what?s shown is unknown.

Includes the console only as pictured (including the small top-mounted
display). No cables, manuals, or other accessories. Suitable as a
replacement unit, retrofit, or for parts/repair.
