KB Electronics KBMM 125 DC Motor Speed Control 115VAC 0 90VDC 8A 33118

  For sale is a KB Electronics KBMM-125 DC Motor Speed Control 115VAC 0-90VDC 8A.
 Item: DC motor speed control module
Brand/Model: KB Electronics KBMM-125 (label shows 34556G). Cust. P/N
50233203.

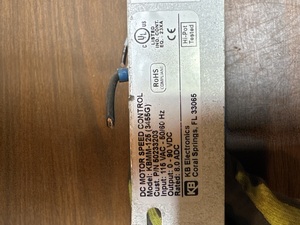

Ratings on label: Input 115 VAC, 50/60 Hz. Output 0?90 VDC. Rated 8.0
ADC.

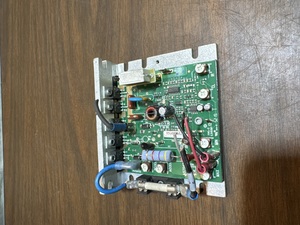

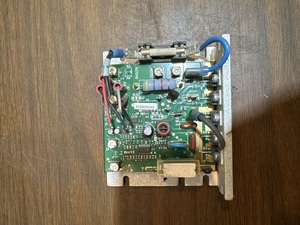

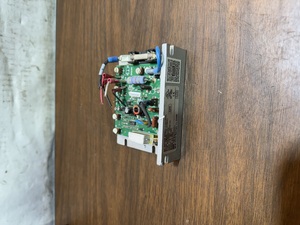

Features visible: heatsink base, screw terminals, onboard trim pots
(MIN/MAX, ACCEL, IR/CL), mounted glass fuse, RoHS/UL/CE markings,
Hi-Pot Tested.
Condition: Used. Cosmetic wear, scratches, and residue from prior use.
Some wires are cut/terminated and may need re-termination. Board and
components appear intact, but functionality not tested (assumption:
sold as-is).
Included: Control module only as pictured. No cover,
potentiometer/knob, cables, or manuals.
Typical use: Replacement DC motor speed controller for equipment using
90 VDC PM motors (general industrial machinery, conveyors, etc.).

(Click on the thumbnail images to enlarge)
