HIWIN LAS 2 1 75 24E Linear Actuator 24V DC 75mm Stroke 300N 32812

  For sale is a HIWIN LAS-2-1-75-24E Linear Actuator 24V DC, 75mm Stroke, 300N.
 Item: HIWIN LAS-2-1-75-24E linear actuator.

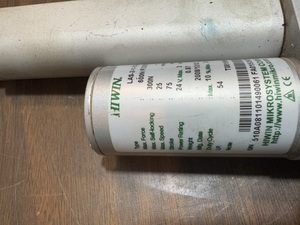

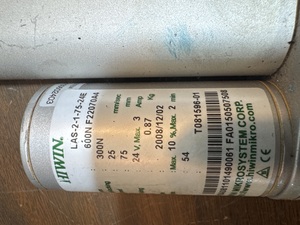

Specs on label: 24 V DC, Max 3 A. Stroke 75 mm. Max speed 25 mm/sec.
Max force 300 N. Self-locking 300 N. Duty cycle Max 10%, Max 2 min.
IP54. Weight 0.87 kg. Mfg date 2008/12/02. S/N 510A081101490061
(label).

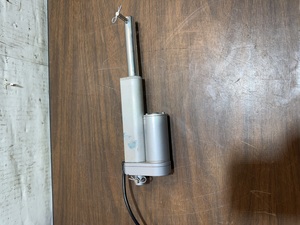

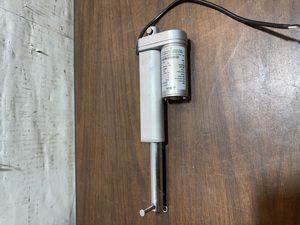

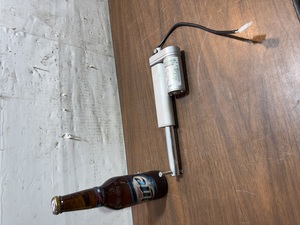

Condition: Used with scuffs, scratches, and some paint marks. Label is
readable. Two-wire lead with small plug. Mounting holes/pins at both
ends.

Includes: actuator only as shown. No brackets, power supply, or other
accessories.

Typical uses: automation, lift mechanisms, furniture/medical equipment,
robotics. Operation untested.
