Data Instruments Power Supply PCB ASSY D42523 01 Rev E 115 230V 50VA 33028

  For sale is a Data Instruments Power Supply PCB ASSY D42523-01 Rev E 115/230V 50VA.

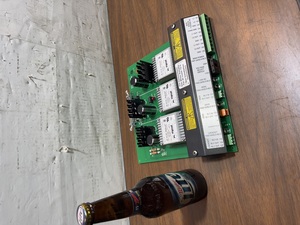

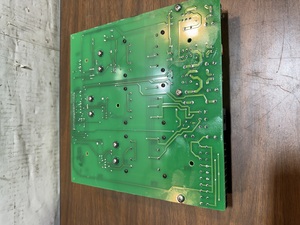

 Industrial power supply/driver PCB assembly from Data Instruments.
Board marking: ASSY D42523-01 Rev E, Made in USA.

Features:

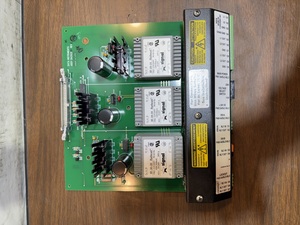

- Three Signal transformer modules (labels indicate 115/230V 50/60 Hz;
1x 30VA and 2x 10VA; model text appears to read IF?30?20 and IF?10?10;
assumption based on visible labels).

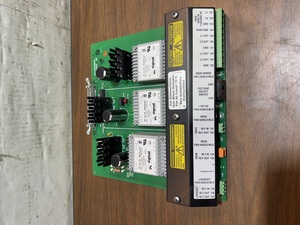

- Terminal block labeled MAIN POWER 115/230 VAC, 50VA, plus multiple
screw?terminal outputs.
- Heatsinks, large electrolytic capacitors, status LEDs, edge
connector, protective cover.

Condition: Used, untested. Cosmetic wear and marker writing; no obvious
missing parts.

Includes the single board only.

(Click on the thumbnail images to enlarge)
