Acme Electric HF 75143 Multi Output Power Supply Rectifier 115 230V 33111

  For sale is a Acme Electric HF-75143 Multi-Output Power Supply Rectifier 115/230V.
 Industrial multi-output DC power supply / custom rectifier.
Brand: Acme Electric Corporation (Cuba, New York)

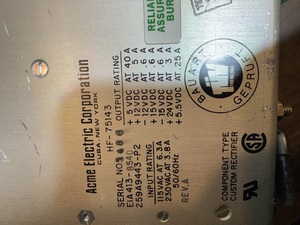

Model: HF-75143, Rev A. Labels also show EIA 413-8540 and 259A9443-P2.
Input: 115 VAC 6.3 A or 230 VAC 3.8 A, 50/60 Hz.
Outputs (per plate): +5 VDC 40 A, +12 VDC 5 A, -12 VDC 6 A, +15 VDC 6
A, -15 VDC 6 A, +24 VDC 4 A, +5.5 VDC 25 A.
Marks: UL/CSA recognized and TUV Rheinland.

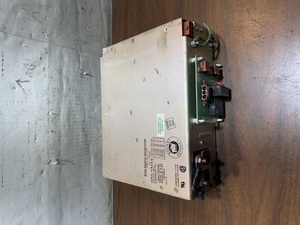

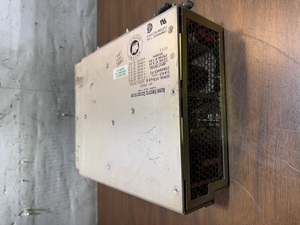

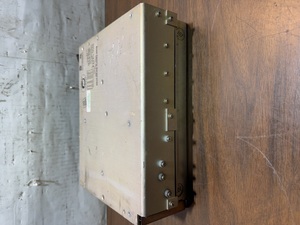

Condition: Used with heavy cosmetic wear. Scratches, scuffs, and
discoloration on the case. Visible heat damage/melted insulation around
a terminal area; see photos. Connectors and small control PCB present.
No other testing performed. Assumption: functionality is untested and
may require service; offered for parts/repair.

Includes: power supply unit only; no cables, hardware, or manuals.

Typical uses: replacement for industrial equipment or donor unit for
multi-rail DC systems.
